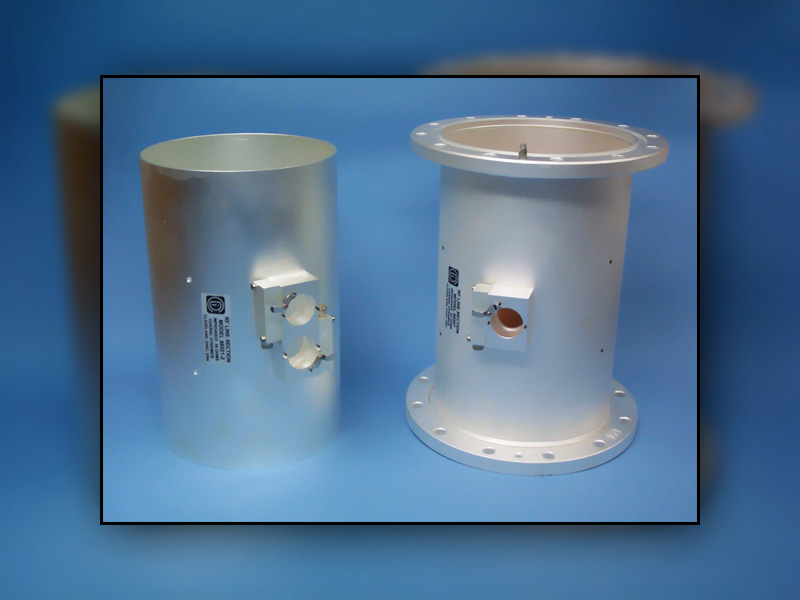

Coaxial Dynamics 6-1/8" Line Sections

[View Larger]


 Silver Plated For High Conductivity

 Low Insertion VSWR - 1.05:1 Max

 Uses Standard Gold Plated Plug-In Elements

 Rugged and Reliable

 Two Year Limited Warranty


These Coaxial Dynamics Line Sections, with appropriate meter (portable or panel mount)  and plug-in elements, form a complete system to measure power in 50-Ohm 6-1/8 inch transmission lines.

Several different models are available in either single socket or dual socket with Flanged, Unflanged Flush, or Unflanged Recessed connections. Dual socket line sections allow both forward and reflected power measurements using only one line section and a meter with a FWD/RFL switch, or a panel mount configuration with 2 meters.

Your confidence in the quality and dependability of these Line Sections is assured with the Coaxial Dynamics Two Year Limited Warranty.

Available Models

Model 88507
6-1/8" Single Socket EIA Flanged Line Section.

Model 88508
6-1/8" Single Socket Unflanged Flush Line Section.

Model 88508-2
6-1/8" Single Socket Unflanged Recessed Line Section.

Model 88520
6-1/8" Dual Socket EIA Flanged Line Section.

Model 88521
6-1/8" Dual Socket Unflanged Flush Line Section.

Model 88521-2
6-1/8" Dual Socket Unflanged Recessed Line Section.
