Coaxial Dynamics Panel Mount Meters

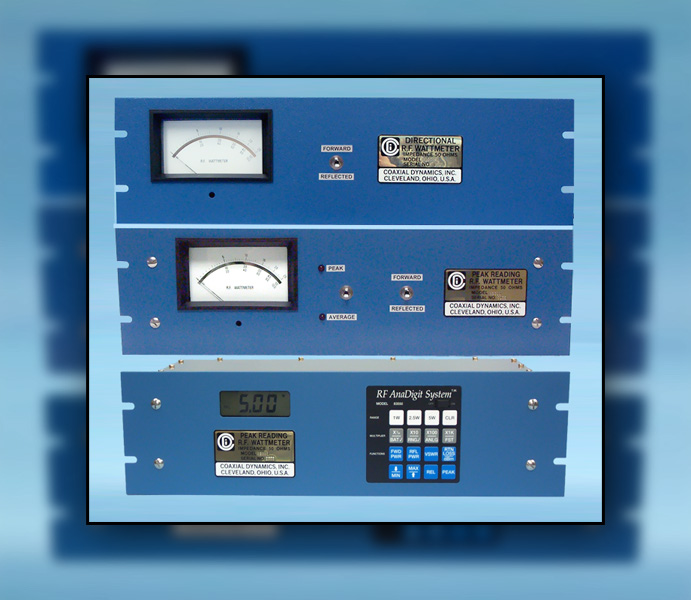

[View Larger]

Features

 4-1/2" Mirrored Scale

 Uses Standard Line Sections

 Uses Standard Gold Plated Plug-In Elements

 Standard EIA 19" Panel Width

 Two Year Limited Warranty

Description


The Coaxial Dynamics series of High-Power Panel Mount Meters are designed to measure RF power in 50-Ohm 1-5/8" to 6-1/8" coaxial transmission lines.

Several different models are available with either 5/10/25 scales or 15/30/60 scales. The Panel Meter can be installed up to 200-feet from the Line Section with the permanently attached DC cables (10-foot normally supplied).

Your confidence in the quality and dependability of these Panel Meters is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Average Reading Models


Model 81004-A
19" Panel with single meter (5/10/25 scale) and FWD/RFL switch for use with Dual Socket Line Sections.

Model 81005-A
19" Panel with dual meters ( 5/10/25 scale) for use with Dual Socket Line Sections.

Model 81007-A
19" Panel with dual meters ( 5/10/25 scale) and 2P5T switch for use with Dual Socket Line Sections. Housing with mounting feet monitors up to five transmitters with additional cables.

Model 81007-B
Panel mount version of 81007-A.

Model 81008-A
19" Panel with single meter ( 5/10/25 scale) for use with Single Socket Line Sections.

Model 81014-A
19" Panel with single meter (15/30/60 scale) and FWD/RFL switch for use with Dual Socket Line Sections.

Model 81015-A
19" Panel with dual meters (15/30/60 scale) for use with Dual Socket Line Sections.

Model 81016-A
19" Panel with single meter (15/30/60 scale) for use with Single Socket Line Sections.

Model 81018-A
19" Panel with dual meters ( 5/10/25 scale) and dual FWD/RFL switches for use with two Dual Socket Line Sections.

Available Peak/Average Reading Models


Model 83010
19" Panel with single meter ( 5/10/25 scale) for use with Single Socket Line Sections.

Model 83011
19" Panel with single meter ( 5/10/25 scale) and FWD/RFL switch for use with Dual Socket Line Sections.

Model 83015
19" Panel with single meter (15/30/60 scale) for use with Single Socket Line Sections.

Model 83016
19" Panel with single meter (15/30/60 scale) and FWD/RFL switch for use with Dual Socket Line Sections.
