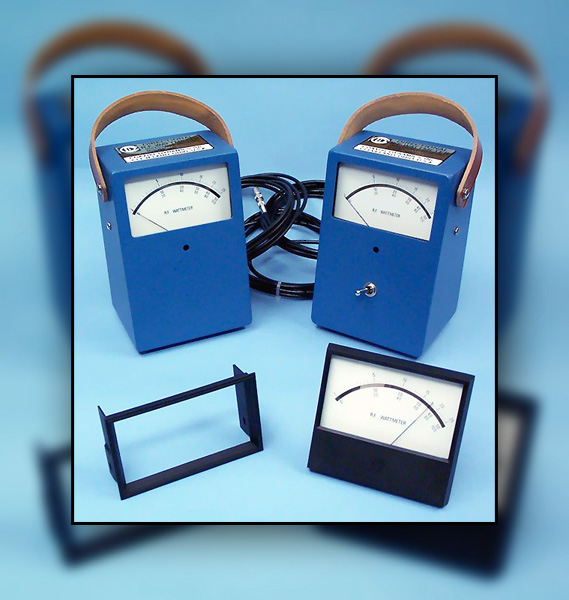

Coaxial Dynamics 88950 & 88960 Series Portable Meters
[View Larger]

Features

 Shock Mounted "Taut Band" Meters

 4-1/2" Mirrored Backed Scales

 Uses Standard Line Sections

 Uses Standard Gold Plated Plug-In Elements

 Two Year Limited Warranty

Description


The Coaxial Dynamics 88950 and 88960 series of High-Power Meters are designed to measure RF power in 50-Ohm 1-5/8" to 6-1/8" coaxial transmission lines. These are the same meters included in our 81100-A, 81300-A, 81400-A and 81600-A High-Power Wattmeters.

Several different models are available with either 5/10/25 scales or 15/30/60 scales. The portable Meter can be used up to 200-feet from the Line Section with the permanently attached DC cables (10-foot normally supplied). The meter unit is protected by a rugged, shock-proof housing.

The use of a rugged shock mounted meter with a mirror-backed scale along with superior taut band technology, provides reliable and accurate readings, and also satisfies both the US Navy and Canadian standards for bounce and vibration. This is your assurance of complete accuracy.

Your confidence in the quality and dependability of these Meters and Components is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Models With 5/10/25 Scales


Model *88950-A
Replacement 30A meter movement for all Coaxial Dynamics Models with 5/10/25 scales.

Model 88952-A
High Power 30A meter in case for use with external Single Socket Line Sections.

Model *88953-A
Replacement 30A meter with bezel kit for panel/rack mounting.

Model 88954-A
High Power 30A meter in case with FWD/RFL switch for use with external Dual Socket Line Sections.

Model 88955-A
Remote Peak/Average reading meter in case with NiCad battery and charger for use with external Single Socket Line Section.

Model 88956-A
High Power 100A meter in case for use with external Single Socket Line Sections.

Model 88957-A
High Power 100A meter in case with FWD/RFL switch for use with external Dual Socket Line Sections.

Model 88961-A
Remote Peak/Average reading meter in case with FWD/RFL switch, NiCad battery and charger for use with external Single Socket Line Section.

Available Models With 15/30/60 Scales


Model 88958-A
High Power 30A meter in case for use with external Single Socket Line Sections.

Model 88959-A
High Power 30A meter in case with FWD/RFL switch for use with external Dual Socket Line Sections.

Model *88962-A
Replacement 30A meter with bezel kit for panel/rack mounting.

Model *88963-A
Replacement 30A meter movement for all Coaxial Dynamics Models with 15/30/60 scales.

* For Wattchman Series replacement meters, please specify model and serial number of Wattchman.

Specifications


Power Range

250 W to 100 kW

Frequency Range

2 MHz to 1000 MHz

Accuracy

5% of full scale

Impedance

50-Ohms

Case Finish

Textured Blue Polyurethane Enamel

Dimensions (H x W x D)

7.3 in x 5 in x 4 in
18.5 cm x 12.7 cm x 10.2 cm

Weight (Meter in Case)

2.5 lbs. (1.13 kg)
