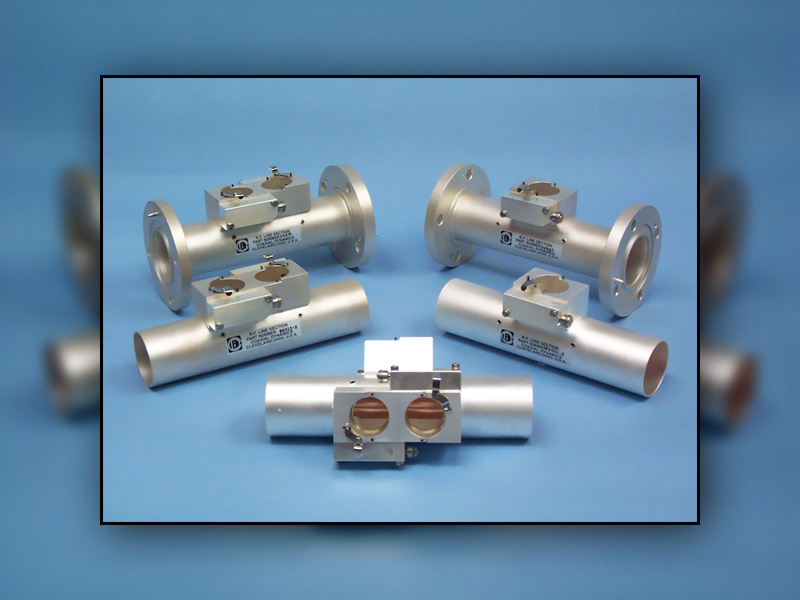

Coaxial Dynamics 1-5/8" Line Sections

[View Larger]

Features

 Silver Plated For High Conductivity

 Low Insertion VSWR - 1.05:1 Max

 Uses Standard Gold Plated Plug-In Elements

 Rugged and Reliable

 Two Year Limited Warranty

Description


These Coaxial Dynamics Line Sections, with appropriate meter (portable or panel mount)  and plug-in elements, form a complete system to measure power in 50-Ohm 1-5/8" transmission lines.

Several different models are available in either single socket or dual socket with Flanged, Unflanged Flush, or Unflanged Recessed connections. Dual socket line sections allow both forward and reflected power measurements using only one line section and a meter with a FWD/RFL switch, or a panel mount configuration with 2 meters.

Your confidence in the quality and dependability of these Line Sections is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Models


Model 88501
1-5/8" Single Socket EIA Flanged Line Section.

Model 88502
1-5/8" Single Socket Unflanged Flush Line Section.

Model 88502-2
1-5/8" Single Socket Unflanged Recessed Line Section.

Model 88511
1-5/8" Double Dual Socket EIA Flanged Line Section.

Model 88514
1-5/8" Dual Socket EIA Flanged Line Section.

Model 88515
1-5/8" Dual Socket Unflanged Flush Line Section.

Model 88515-2
1-5/8" Dual Socket Unflanged Recessed Line Section.

Model 88522
1-5/8" Triple Socket Unflanged Flush Line Section.

Model 88522-2
1-5/8" Triple Socket Unflanged Recessed Line Section.

Model 88538
1-5/8" Triple Socket EIA Flanged Line Section.
