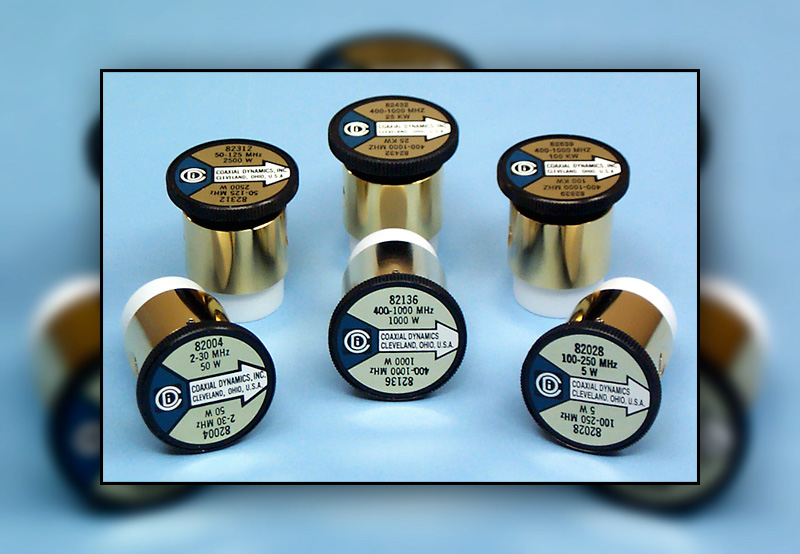

Coaxial Dynamics 82000 Series Elements
[View Larger]


Features

 Gold Plated For High Conductivity

 Interchangeable With Other Elements

 NIST Traceable Standards For Accuracy

 Rugged and Reliable

 Two Year Limited Warranty

Description


The 82000 series of Coaxial Dynamics Plug-In Elements are calibrated to exacting specifications to assure interchangeability with one another, and with any instrument in the 7/8" line size - whether purchased today or 20 years ago.

We ensure element accuracy using RF Power Standards (NIST traceable) that are supported by more than 30 years of history and experience.

Your confidence in the quality and dependability of the 82000 series of Plug-In Elements is assured with the Coaxial Dynamics Two Year Limited Warranty.


82000 Series Plug-In Elements (30A)



Power
Rating

Frequency Range (MHz)

2-30

25-60

50-125

100-250

200-500

400-1000

950-1300

1100-1800

5 W

---

82012

82020

82028

82036

82045

82068

82079

10 W

---

82013

82021

82029

82037

82046

82069

82080

25 W

82003

82014

82022

82030

82038

82047

82070

82081

50 W

82004

82015

82023

82031

82039

82048

82071

82082

100 W

82005

82016

82024

82032

82041

82049

82072

82083

250 W

82006

82017

82025

82033

82042

82050

82073

---

500 W

82007

82018

82026

82034

82043

82051

82074

---

1000 W

82008

82019

82027

82035

82044

82052

82075

---

2500 W

82009

---

---

---

---

---

---

---

5000 W

82010

---

---

---

---

---

---

---



82000 Series High Power Elements (30A)



Power
Rating

Frequency Range (MHz)

2-30

 25-60

 50-125

 100-250

 200-500

 400-1000

2500 W

---

82053

82054

82055

82056

82057

5000 W

---

82058

82059

82060

82061

82062

 10000 W

 82011

 82063

82064

82065

82066

82067

The High Power Elements above are for use in 81000-A and 83000-A
series Wattmeters and 7/8" Line Sections (Peak Mode only)


82000 Series Milliwatt Elements (30A)


100 mW

Model

100 mW

Model

250 mW

Model

500 mW

Model

20-23 MHz

820A022

400-420 MHz

820A410

70-80 MHz

820B075

25-30 MHz

820C028

44-50 MHz

820A047

450-470 MHz

820A460

72-76 MHz

820B074

65-90 MHz

820C078

62-70 MHz

820A066

740-760 MHz

820A750

105-120 MHz

820B113

72-76 MHz

820C074

72-76 MHz

820A074

800-900 MHz

820A850

130-150 MHz

820B140

105-120 MHz

820C113

105-120 MHz

820A113

150-180 MHz

820B165

130-170 MHz

820C150

125-136 MHz

820A130

310-350 MHz

820B330

240-290 MHz

820C265

135-165 MHz

820A150

416-436 MHz

820B426

300-350 MHz

820C325

160-175 MHz

820A167

800-900 MHz

820B850

450-470 MHz

820C460

190-205 MHz

820A198

900-950 MHz

820B925

800-900 MHZ

820C850

310-350 MHz

820A330

900-950 MHZ

820C925



82000 Series Low Power Elements (30A)


1 watt

Model

1 watt

Model

2.5 watts

Model

28-44 MHz

820D036

310-350 MHz

820D330

60-80 MHz

820E070

40-50 MHz

820D045

327-543 MHz

820D435

80-140 MHz

820E110

44-70 MHz

820D057

425-850 MHz

820D638

95-150 MHz

820E123

70-120 MHz

820D095

 800-950 MHz

 820D875

150-250 MHz

820E200

108-118 MHz

820D113

200-300 MHz

820E250

108-181 MHz

820D145

225-400 MHz

820E313

150-250 MHz

820D200

275-450 MHz

820E363

200-300 MHz

820D250

340-560 MHz

820E450

 275-450 MHz

 820D363

 800-950 MHZ

 820E875

Other low power elements are available.
Please consult factory if you don't find what you need.
