Coaxial Dynamics 7/8" Line Sections

[View Larger]

Features

 Silver Plated For High Conductivity

 Low Insertion VSWR - 1.05:1 Max

 Uses Standard Gold Plated Plug-In Elements

 Rugged and Reliable

 Two Year Limited Warranty

Description

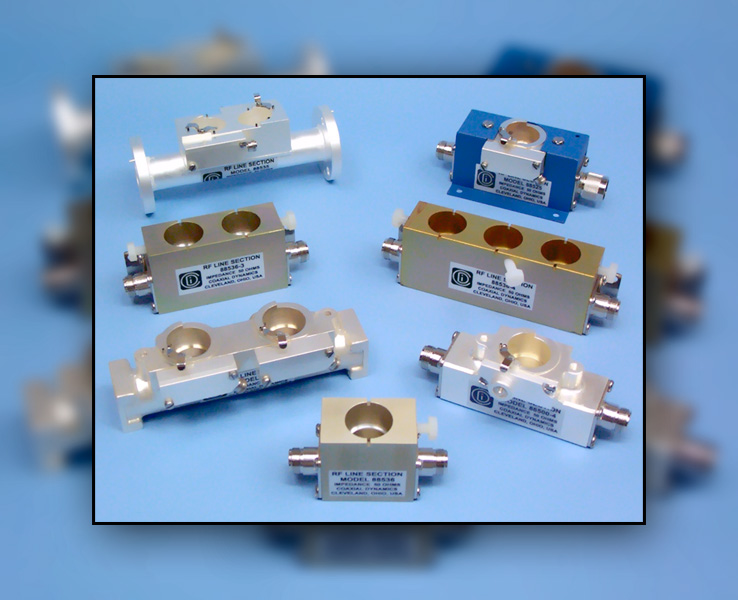

These Coaxial Dynamics Line Sections, with appropriate meter (portable or panel mount) and plug-in elements, form a complete system to measure power in 50-Ohm coaxial cable and 7/8" transmission lines.

Several different models are available in either single socket or dual socket with a wide variety of connector options. Dual socket line sections allow both forward and reflected power measurements using only one line section and a meter with a FWD/RFL switch, or a panel mount configuration with 2 meters.

Your confidence in the quality and dependability of these Line Sections is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Models


Model *88500
7/8" Single Socket Line Section.**

Model *88500-1
7/8" Single Socket Line Section (3-5/8" long).

Model *88500-2
7/8" Dual Socket Line Section.

Model 88500-3
7/8" Single Socket Line Section with MIC DC connector, type N (F) Quick Match Connectors and dust plug.

Model *88500-4
7/8" Single Socket Line Section (3-5/8" long) with MIC DC connector.

Model *88525
7/8" Single Socket Line Section (3-5/8" long) with mounting bracket.

Model 88527
7/8" Single Socket Line Section (3-5/8" long) with MIC DC connector, type N (F/M) Quick Match Connectors, mounting bracket and dust plug.

Model 88529-1
7/8" Dual Socket Line Section with MIC DC connectors, type N (F/M) Quick Match Connectors and mounting brackets.

Model 88529-2
7/8" Dual Socket Line Section with MIC DC connectors, type HN (F/M) Quick Match Connectors and mounting brackets.

Model 88529-3
7/8" Dual Socket Line Section with BNC (F) DC connectors, type N (F) Quick Match Connectors and mounting brackets.

Model *88529-5
7/8" Dual Socket Line Section with MIC DC connectors.

Model 88529-6
7/8" Dual Socket Line Section with type N (F/M) Quick Match Connectors and mounting brackets.

Model 88530
7/8" Single Socket Line Section (3-5/8" long) with type N (F) Quick Match Connectors, mounting brackets and DC cover plate.

Model 88531
7/8" Single Socket EIA Fixed Flanged Line Section (no DC connector).

Model 88534
7/8" Single Socket EIA Swivel Flanged Line Section.

Model 88535
7/8" Dual Socket EIA Swivel Flanged Line Section.

Model *88536-1
7/8" Single Socket Line Section for use with 87000 series X-Tractors (no DC connector).

Model *88536-2
7/8" Dual Socket Line Section for use with 87000 series X-Tractors (no DC connectors).

Model 88536-3
7/8" Dual Socket Line Section with type N (F) Quick Match Connectors and mounting brackets for use with 87000 series X-Tractors (no DC connectors).

Model 88536-4
7/8" Triple Socket Line Section with type N (F) Quick Match Connectors and mounting brackets for use with 87000 series X-Tractors (no DC connectors).

Model 88536-5
7/8" Single Socket Line Section with type N (F) Quick Match Connectors and mounting brackets for use with 87000 series X-Tractors (no DC connector).

* Quick Match Connectors not included.
** Also replacement line section for Model 81000-A, 81001-A, and 83000-A.
