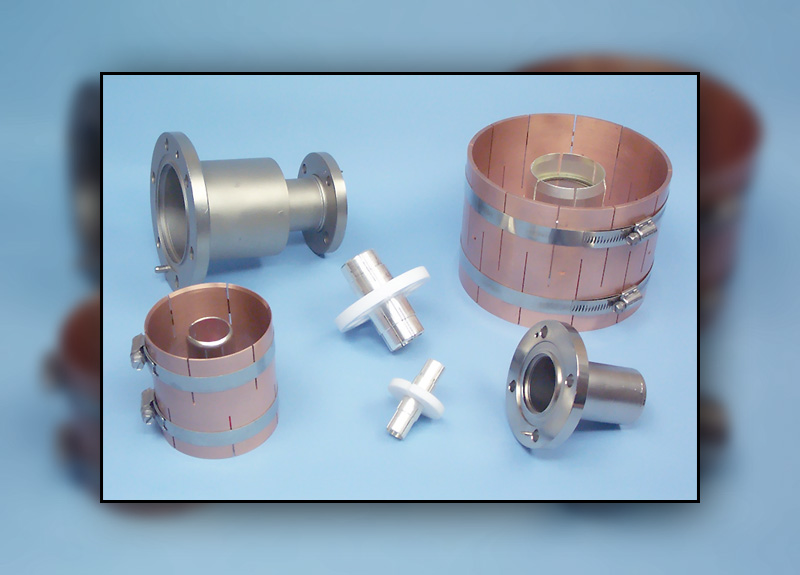

Coaxial Dynamics Coupling Kits and Adapters
[View Larger]


Features

 Silver Plated For High Conductivity

 Rugged and Reliable

Description


Most of the common Coupling Kits and Adapters are available from Coaxial Dynamics and may be purchased along with our Wattmeters or Line Sections to facilitate installation.


Available Coupling Kits


Model 88100
For 7/8" EIA Flanged line. Includes anchor-insulator connector assembly and flange hardware.

Model 88101
For 1-5/8" EIA Flanged line. Includes anchor-insulator connector assembly and flange hardware.

Model 88102
For 3-1/8" EIA Flanged line. Includes anchor-insulator connector assembly and flange hardware.

Model 88103
For 4-1/16" EIA Flanged line. Includes anchor-insulator connector assembly and flange hardware.

Model 88104
For 6-1/8" EIA Flanged line. Includes anchor-insulator connector assembly and flange hardware.

Model 88111
For 1-5/8" Unflanged line. Includes inner conductor connector and outer conductor sleeves with clamps.

Model 88112
For 3-1/8"
Unflanged line. Includes inner conductor connector and outer conductor sleeves with clamps.

Model 88113
For 4-1/16" Unflanged line. Includes inner conductor connector and outer conductor sleeves with clamps.

Model 88114
For 6-1/8" Unflanged line. Includes inner conductor connector and outer conductor sleeves with clamps.

Model 88123
3-1/8" EIA Flanged to Unflanged Adapter.


Available Rigid Line Adapters


Model 88131
1-5/8" Unflanged to 3-1/8" Unflanged line series.

Model 88132
3-1/8" Unflanged to 4-1/16" Unflanged line series.

Model 88133
4-1/16" Unflanged to 6-1/8" Unflanged line series.

Model 88134
3-1/8" Unflanged to 6-1/8" Unflanged line series.

Model 88141
1-5/8" EIA Flanged to 3-1/8" EIA Flanged line series.

Model 88142
3-1/8" EIA Flanged to 4-1/16" EIA Flanged line series.

Model 88143
4-1/16" EIA Flanged to 6-1/8" EIA Flanged line series.

Model 88144
3-1/8" EIA Flanged to 6-1/8" EIA Flanged line series.
