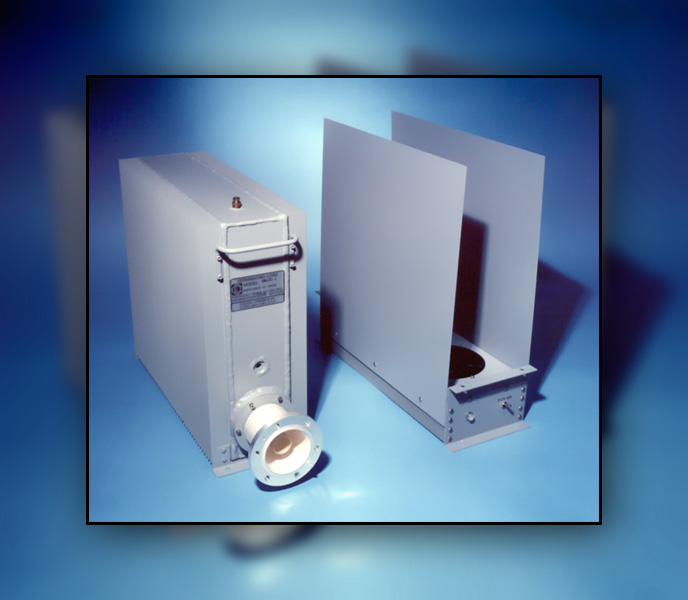

Coaxial Dynamics 84000 Series Liquid/Air Loads
[View Larger]


Features


 Continuous Full-Rated Power

 Low Maintenance & High Reliability

 Handles Both Analog & Digital Signals

 Two Year Limited Warranty

Description


Several models of these loads are available to cover CW power ranges of 2500, 3000, 5000 and 6000 watts over a frequency range of DC to 1.0 GHz. At a characteristic impedance of 50-Ohms, the VSWR does not exceed 1.10 to 1. They can be used to terminate AM, FM, TV, CW or Pulse transmissions in 50-ohm coaxial transmission line systems.

 The 5000 and 6000 watt models are forced air-cooled. All models are available with optional thermal overload switches to activate the blower assembly and to interface with interlock or other warning circuits.

Your confidence in the quality and dependability of the 84000 Series Liquid/Air Cooled RF Coaxial Loads is assured with the Coaxial Dynamics Two Year Limited Warranty.

Available Models and Specifications

Model  CW Power
Rating 		 VSWR Connector Nominal Size
inches (cm)		 Weight
84025-LC 2500 W  1.1:1 MAX DC-1 GHz  LC Female 18" x 7.5" x 19.5"
(45.72 x 19.05 x 49.53) 		55 lbs
(24.95kg)
84025-1 2500 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84025-2 2500 W 1.1:1 MAX DC-1 GHz  1-5/8" UnFlg Rec
84025-3 2500 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84025-4 2500 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
84026-1 2500 W 1.1:1 MAX DC-1 GHz 3-1/8" EIA Flg
84026-2 2500 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg Rec
84026-3 2500 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg
84030-LC 3000 W 1.1:1 MAX DC-1 GHz LC Female 18" x 7.5" x 19.5"
(45.72 x 19.05 x 49.53) 		66 lbs
(29.94kg)
84030-1 3000 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84030-2 3000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg Rec
84030-3 3000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84030-4 3000 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
84031-1 3000 W 1.1:1 MAX DC-1 GHz 3-1/8" EIA Flg
84031-2 3000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg Rec
84031-3 3000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg
 84050-LC*  5000 W 1.1:1 MAX DC-1 GHz LC Female 23" x 7.75" x 19.5"
(58.42 x 19.69 x 49.53) 		70 lbs
(31.75kg)
84050-1* 5000 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84050-2* 5000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg Rec
84050-3* 5000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84050-4* 5000 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
84051-1* 5000 W 1.1:1 MAX DC-1 GHz 3-1/8" EIA Flg
84051-2* 5000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg Rec
84051-3* 5000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg
84060-LC* 6000 W 1.1:1 MAX DC-1 GHz LC Female 23" x 7.75" x 19.5"
 (58.42 x 19.69 x 49.53) 		 81 lbs
 (36.74kg)
84060-1* 6000 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84060-2* 6000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg Rec
84060-3* 6000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84060-4* 6000 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
84061-1* 6000 W 1.1:1 MAX DC-1 GHz 3-1/8" EIA Flg
84061-2* 6000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg Rec
84061-3* 6000 W 1.1:1 MAX DC-1 GHz 3-1/8" UnFlg
*Equipped with forced-air blower assembly -- specify 115 or 230 VAC.
Ambient air temperatures for CW power ratings are -40°C to +45°C.
All loads must operated with vent plug on top position only.
Consult factory if you require a different connector type.

Available Options
Model Description
88200 Thermoswitch, Normally Closed
88201 Thermoswitch, Normally Open
 88250   Forced-Air Blower Assembly -- specify 115 or 230 VAC
