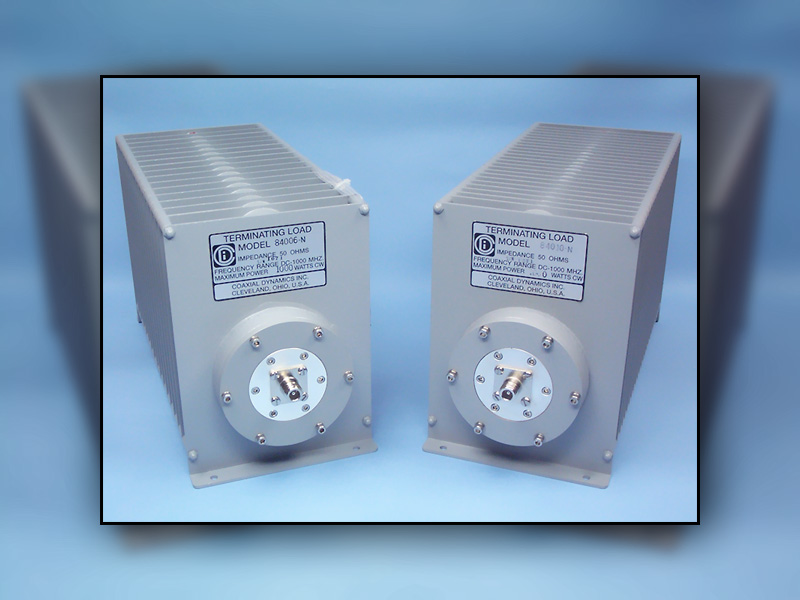

Coaxial Dynamics 84000 Series Liquid/Air Loads
[View Larger]


Features


 Continuous Full-Rated Power

 Low Maintenance & High Reliability

 Handles Both Analog & Digital Signals

 Two Year Limited Warranty

Description


Several models of these loads are available to cover CW power ranges of 600 and 1000 watts over a frequency range of DC to 1.0 GHz. At a characteristic impedance of 50-Ohms, the VSWR does not exceed 1.10 to 1. They can be used to terminate AM, FM, TV, CW or Pulse transmissions in 50-ohm coaxial transmission line systems.

 All models are available with optional thermal overload switches to interface with interlock or other warning circuits.

Your confidence in the quality and dependability of the 84000 Series Liquid/Air Cooled RF Coaxial Loads is assured with the Coaxial Dynamics Two Year Limited Warranty.

Available Models and Specifications

Model  CW Power
Rating 		 VSWR Connector Nominal Size
inches (cm)		 Weight
84005-N 500 W  1.1:1 MAX DC-1 GHz  N Female  9" x 6.63" x 16.13"
(22.86 x 16.84 x 40.97)		 22 lbs
(9.98kg)
84006-N 600 W 1.1:1 MAX DC-1 GHz N Female 9" x 6.63" x 16.13"
(22.86 x 16.84 x 40.97)		 23 lbs
(10.43kg)
 84010-LC/N  1000 W 1.1:1 MAX DC-1 GHz LC & N Female 9" x 6.63" x 16.19"
 (22.86 x 16.84 x 41.12) 		 25 lbs
 (11.34kg)
84010-N 1000 W 1.1:1 MAX DC-1 GHz N Female
84010-NM 1000 W 1.1:1 MAX DC-1 GHz N Male
84010-1 1000 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84010-2 1000 W 1.1:1 MAX DC-1 GHz  1-5/8" UnFlg Rec
84010-3 1000 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84010-4 1000 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
 84015-LC  1500 W 1.1:1 MAX DC-1 GHz LC Female 13.63" x 7.38" x 15.85"
 (34.62 x 18.75 x 40.26) 		 40 lbs
 (18.14kg)
84015-N 1500 W 1.1:1 MAX DC-1 GHz N Female
84015-NM 1500 W 1.1:1 MAX DC-1 GHz N Male
84015-1 1500 W 1.1:1 MAX DC-1 GHz 1-5/8" EIA Flg
84015-2 1500 W 1.1:1 MAX DC-1 GHz  1-5/8" UnFlg Rec
84015-3 1500 W 1.1:1 MAX DC-1 GHz 1-5/8" UnFlg
84015-4 1500 W 1.1:1 MAX DC-1 GHz 7/8" EIA Flg
Ambient air temperatures for CW power ratings are -40°C to +45°C.
All loads must operated with vent plug on top position only.
Consult factory if you require a different connector type.

Available Options
Model Description
 88200   Thermoswitch, Normally Closed
88201 Thermoswitch, Normally Open
