Coaxial Dynamics 'Digital Wattchman' Monitor/Alarm System

[View Larger]


Features

 Protects Your Transmitter From High
   Reflected or Low Forward Conditions

 Continuous Display Of Forward
   and Reflected Power

 Audible and Visual Alarms

 Fast Fault Response (15ms)

 Remote Reset Provision

 110/220 VAC Input Switch

 Amplified DC Outputs

 Two Year Limited Warranty

Description


The Coaxial Dynamics 'Digital Wattchman' Rack Mounted Station Monitor/Alarm is similar in function and appearance to our 81090 Series except it is designed for the accurate measurement of complex RF Waveforms such as CDMA (Code Division Multiple Access), DAB (Digital Audio Broadcast), DTV (Digital TV) and HDTV (High Definition TV), as well as CW, AM and FM.

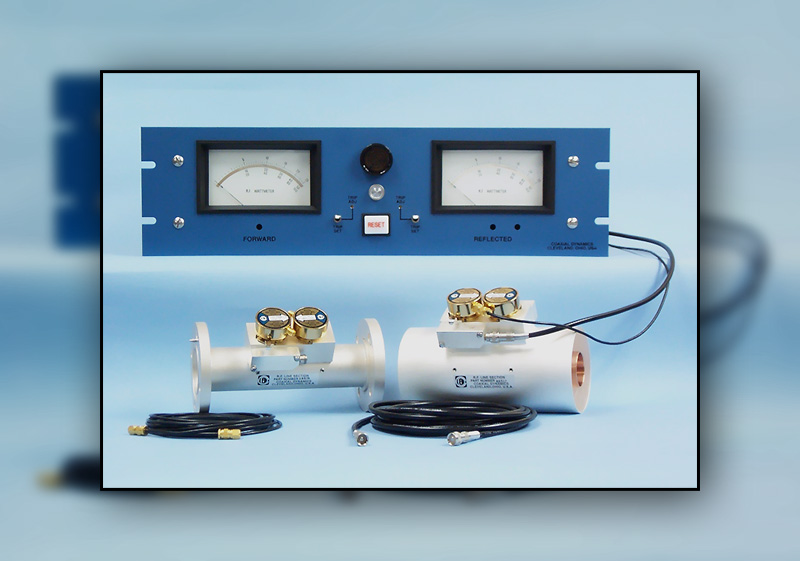

A Digital Station Monitor/Alarm system installation consists of a Digital Wattchman, a dual socket Line Section and two Digital Plug-In Elements for monitoring both forward and reflected power. The Digital Wattchman is supplied with four 25-foot cable assemblies for connection to the line section and elements, and a 6 foot AC power cord. Installation requires inserting the line section and elements into the transmission line, connecting the terminals of the transmitter interlock systems to the proper terminals on the Digital Wattchman and providing AC power. (Line Sections and Digital Elements are sold separately.)

Both models feature adjustable forward and reflected trip adjustments, a built in DC amplifier and 110/220 VAC input switch. Model 91090 has our standard 5/10/25 scales and Model 91091 has 15/30/60 scales.

Abnormal load conditions quickly cause transmitter shutdown within less than 15 milliseconds (including control relay). An audible single tone alarm will indicate system/transmitter malfunction. Relay contacts are provided for remote alarm and reset switching. Fail-Safe or Non-Fail-Safe mode is selected by a switch located on the rear of the instrument.

Your confidence in the quality and dependability of the Models 91090 and 91091 Digital Wattchman is assured with the Coaxial Dynamics Two Year Limited Warranty.


Specifications


Power Range

100 W to 100 kW

Frequency Range

54 MHz to 806 MHz

Meter Type

4-1/2 inch mirrored scale movement

Accuracy

5% when used with proper Coaxial Dynamics
line sections and elements

Response Time

Less than 15 milliseconds
(including control relay function)

Front Panel Controls

Push button reset
Trip set adjustments

Rear Panel Controls

Audible alarm switch
Fail-Safe mode switches
110/220 VAC input switch

Connections

Meter inputs
NO/NC control connections
Remote alarm connections
Remote reset connections
AC power receptacle
Amplified DC Outputs
Element Connections

Contact Ratings

5A at 110 VAC non-inductive

Power Requirements

110/220 VAC, 50/60 Hz, 10 Watts maximum

Dimensions (H x W x D)

5.25 in. (13.3 cm) x 19 in. (48.3 cm) x 8 in. (20.3 cm)

Weight

6.5 lbs. (2.95 kg)

Finish

Textured Blue Polyurethane Enamel Front Panel
Alodine (Yellow Iridite)
Chassis

Please note: Line Sections and Digital Elements are sold separately.
