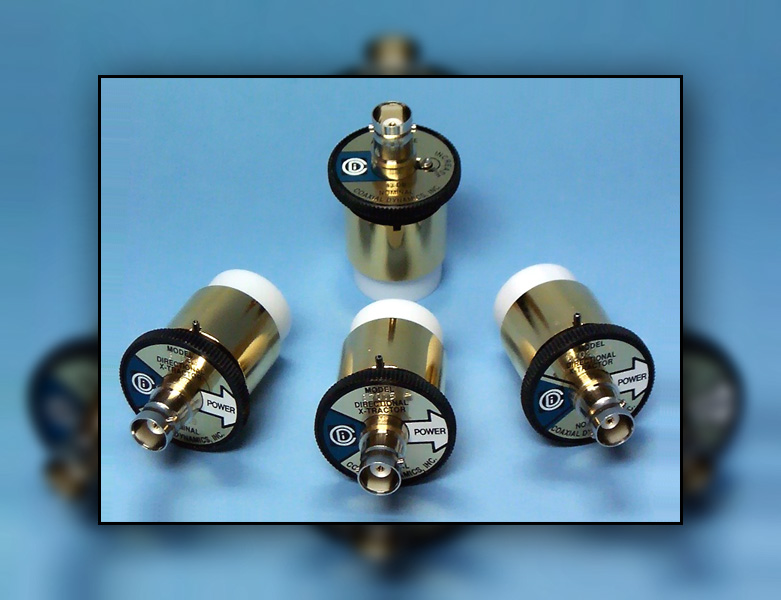

Coaxial Dynamics 87000 Series X-Tractor Directional Signal Samplers
[View Larger]


Features


 Gold Plated For High Conductivity

 Permits Easy RF Power Sampling

 Rugged and Reliable

 Two Year Limited Warranty

Description


The Coaxial Dynamics 87000 series X-Tractors are directional RF Signal Sampler Elements designed to permit easy coupling into a coaxial line for counting of frequency, spectrum analysis or scope display.

The Directional X-Tractors are transparent to RF signals by virtue of their extremely low VSWR and Insertion Loss. Power levels of up to 100 kW can be sampled for frequencies between 50 and 500 MHz. Fixed attenuation values are available ranging from 37.5 to 70 dB.

The X-Tractors comes with a BNC Female connector for the RF output and may be used in conjunction with the Model 81000-A and other RF Wattmeters, its own auxiliary line section (Model 88536), or any standard 7/8" through 6-1/8" line section.

Your confidence in the quality and dependability of the 87000 series of X-Tractors is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Models

Model Line Size Max Power Coupling (dB) Frequency Range

*87014S

7/8"

 1000 W 37.5 +/- .75 dB 54 to 90 MHz

*87015

7/8"

 1000 W 50 +/- 1 dB 50 to 500 MHz
87016 7/8" 1000 W 37.5 +/- .75 dB 174 to 230 MHz

*87024

 1-5/8" 1000 W 40 +/- 1 dB 50 to 500 MHz

87024H

 1-5/8" 5000 W 40 +/- 1 dB 50 to 500 MHz

87025

 1-5/8" 10 kW 50 +/- 1 dB 50 to 500 MHz

87026

 1-5/8" 2500 W 45 +/- 1 dB 400 to 800 MHz

87027

 1-5/8" 5000 W 50 +/- 1 dB 400 to 800 MHz

87035

 3-1/8" 10 kW 50 +/- 1 dB 50 to 500 MHz

87035H

 3-1/8" 35 kW 50 +/- 1 dB 50 to 500 MHz

87036

 3-1/8" 100 kW 60 +/- 1 dB 50 to 500 MHz

87038

 3-1/8" 5000 W 50 +/- 1 dB 400 to 800 MHz

87039

 3-1/8" 10 kW 70 +/- 1 dB 400 to 800 MHz

87046

 4-1/16" 50 kW 60 +/- 1 dB 50 to 500 MHz

87066

 6-1/8" 50 kW 60 +/- 1 dB 50 to 500 MHz

* +/- 1 dB at 174 to 500 MHz, Coupling drops to 48 dB at 50 MHz



Specifications


VSWR

1.1:1 max

Insertion Loss

0.1 dB max

Accuracy

±5% of full scale

Directivity

30 dB

Impedance

50-Ohms

Connector

BNC Female

Weight

1.25 oz. (.035 kg)
