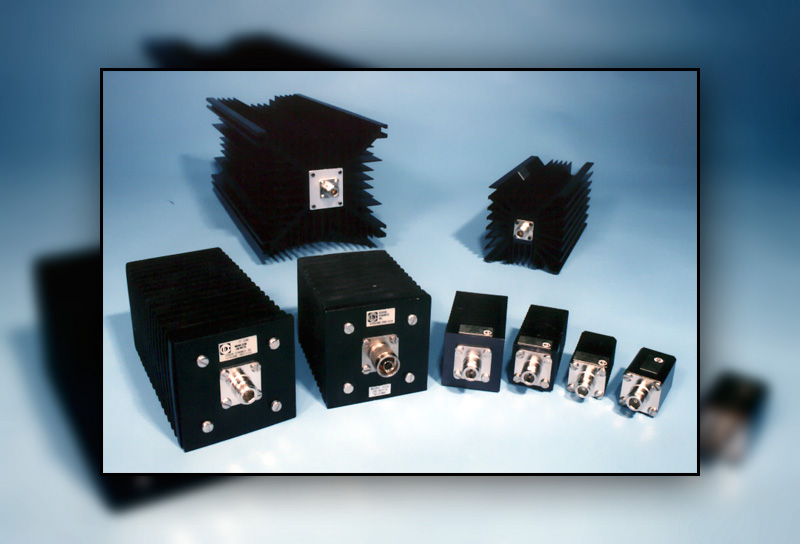

 Coaxial Dynamics Dry Convection RF Loads
[View Larger]


Features


 Continuous Full-Rated Power

 No Field Adjustments Needed

 Any Operating Position

 Two Year Limited Warranty

Description


These 50-Ohm RF Load Resistors are light weight, dry coaxial loads that can be used in any position.

All power ratings are for continuous operation. However, data is available for special applications and pulsed power conditions.

Any of our Quick Match connectors can be used on these loads. Should you desire a connector other than the one included, it should be specified when ordering.

Your confidence in the quality and dependability of these Dry Loads is assured with the Coaxial Dynamics Two Year Limited Warranty.


Available Models and Specifications

 Model   Power
 Rating		 VSWR Frequency
Range		 Connector Nominal Size
(including connector)		  Weight
4005 5 W  1.05:1
1.10:1		  DC-1 GHz
1-3 GHz		 N Female 1.25"  sq x 2.75"
(3.18cm x 6.98cm)		 4.0 oz
(113 g)
4010 10 W 1.05:1
1.10:1		 DC-1 GHz
1-3 GHz		 N Female 1.25" sq x 2.75"
(3.18cm x 6.98cm)		 4.0 oz
(113 g)
4025 25 W 1.10:1
1.20:1		 DC-2 GHz
2-4 GHz		 N Female 2.83" x 1.02" x 4.45"
(7.2cm x 2.6cm x 11.3cm)		 10.2 oz
(290g)
4050 50 W 1.10:1
1.20:1		 DC-2 GHz
2-4 GHz		 N Female 2.83" x 1.97" x 4.45"
(7.2cm x 5.0cm x 11.3cm)		 19.1 oz
(540g)
4100 100 W 1.05:1
1.10:1		 DC-1 GHz
1-3 GHz		 N Female 4" sq x 5.45"
(10.2cm x 13.8cm)		 2.95 lbs
(1.34kg)
4150 150 W 1.05:1
1.10:1		 DC-1 GHz
1-3 GHz		 N Female 4" sq x 7.09"
(10.2cm x 18cm)		 3.81 lbs
(1.73kg)
4151 150 W 1.10:1
1.20:1		 DC-1 GHz
1-2.5 GHz 		 N Female 4.72" sq x 5.47"
(12cm x 13.9cm)		 3.09 lbs
(1.4kg)
4161 250 W 1.10:1
1.20:1		 DC-1 GHz
1-2.5 GHz 		 N Female 5.31" x 5.28" x 8.43"
 (13.5cm x 13.4cm x 21.4cm) 		6.61 lbs
(3kg)
4165 400 W 1.10:1
1.20:1		 DC-1 GHz
1-2.5 GHz 		 N Female 5.31" x 5.28" x 12.56"
 (13.5cm x 13.4cm x 31.9cm) 		9.26 lbs
(4.2kg)
4175 600 W 1.10:1
1.20:1		 DC-1 GHz
1-2.5 GHz 		 N Female 10.08" x 4.72" x 8.62"
(25.6cm x 12cm x 21.9cm)		 18.08 lbs
(8.2kg)

*Equipped with 12 VAC cooling fan -- specify 115 or 230 VAC.
Ambient air temperatures for CW power ratings are -40°c to +45°C.
